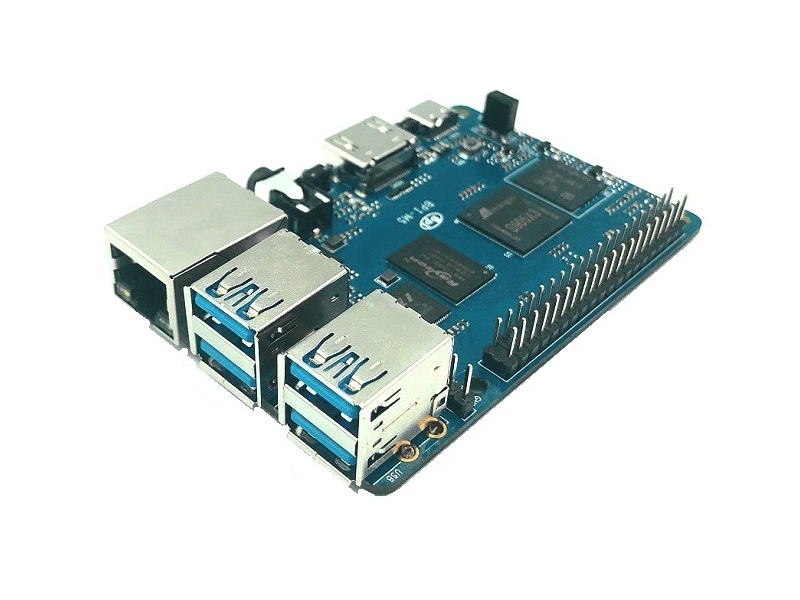

Banana Pi BPI-M5 is a new generation single board computer design , use Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) Processor. Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz). BPI-M5 will come with 4GB LPDDR4 RAM, 16GB eMMC flash, and offers four USB 3.0 ports, one Gigabit Ethernet port, and on HDMI 2.1 output port for 4K/8K video output.

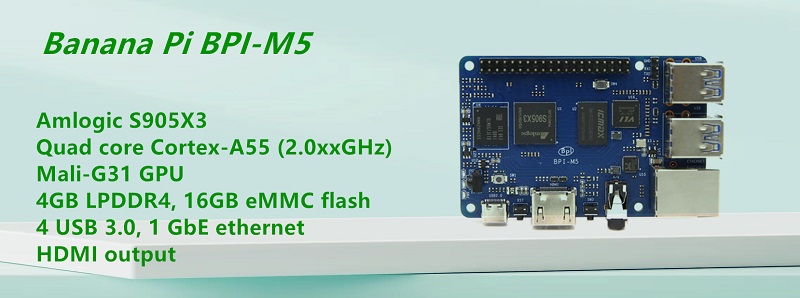

BPI-M5 The Next Generation Single Board Computer From Banana Pi:

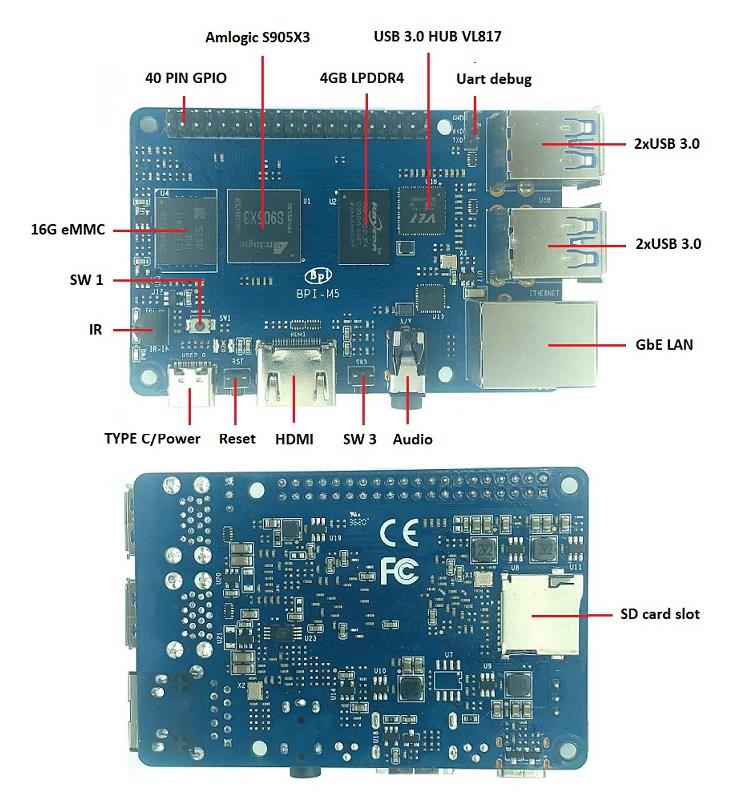

Hardware interface:
Hardware spec:
| HardWare Specification of Banana pi BPI-M5 | |||
| CPU | Amlogic S905X3 Quad-Core Cortex-A55 (2.0xxGHz) | ||
| GPU | Mali-G31 MP2 GPU with 4 x Execution Engines (650Mhz) | ||
| Memory | 4 GB LPDDR4 | ||
| Storage | MicroSD slot with support for up to 256GB expansion and 16G eMMC flash with support for up to 64GB | ||
| Network | 10/100/1000 Mbit/s Ethernet ,Optional WiFi USB dongle | ||
| Video Output(s) | 1 x HDMI 2.0 (up to 4K@60Hz with HDR, CEC, EDID) | ||
| Audio Output(s) | 3.5mm jack and 1 x HDMI digital output | ||
| USB ports | USB 3.0 PORT (x4) | ||
| GPIO | 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). GPIO pins can be used for UART, I2C, SPI or PWM | ||
| Switches | Reset, Power and U-boot | ||
| LED | Power Status and Activity status | ||
| Power Source | 5 volt @3A via Micro USB (TYPE C) | ||
| Size & Weight | 92x60mm, 48g | ||
| OS | Android and Linux | ||
