核心板和开发套件

香蕉派 BPI-S64 核心板与开发套件采用矩力S700芯片,支持2G LPDDR,8G eMMC

CPU主控: 矩力SOC S700,ARM Cortex-A53 Quad-Core CPU
GPU:Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
2GB LPDDR3内存
8GB eMMC 存储
    香蕉派BPI-S64核心板采用矩力(Actions) SOC S700设计。S700芯片采用ARM Cortex-A53四核CPU,Mali450 MP4图形处理器。BPI-S64 core,板载2G LPDDR3和8G eMMC存储。BPI-S64核心模块足够小,适合各种硬件。此外,BPI-S64开发套件还提供带GPIO接口的I/O板,以及USB、MicroUSB、CSI、DSI、HDMI、MicroSD等多种接口。

    关键特性:
    1. CPU主控: 矩力SOC S700,ARM Cortex-A53 Quad-Core CPU
    2. GPU:Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
    3. 2GB LPDDR3内存
    4. 8GB eMMC 存储

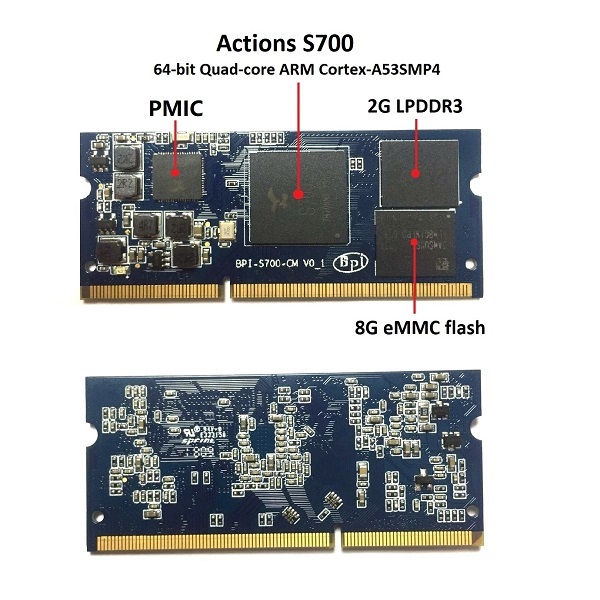

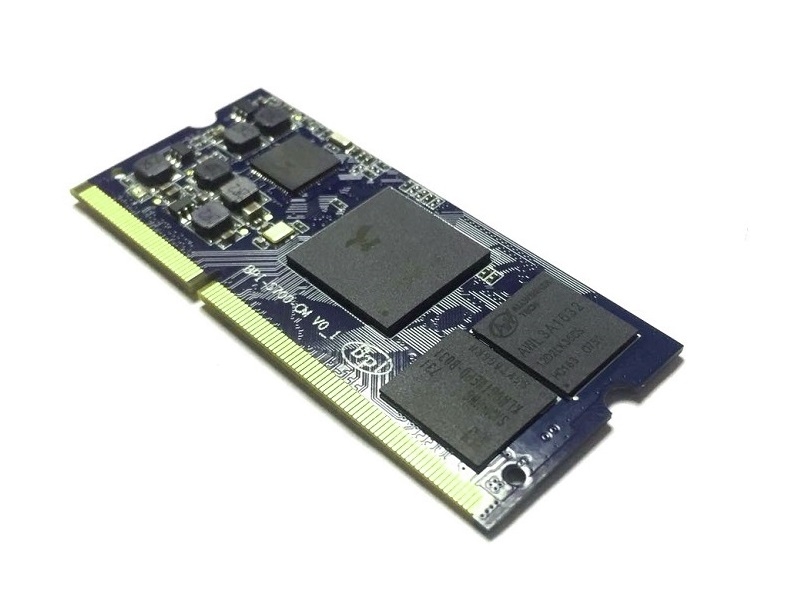

    BPI-S64 core 核心板.

    BPI-S64 core核心板规格:
    HardWare Specification of Banana pi BPI-S64 core
    CPU Actions SOC S700,ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU
    Memory 2GB LPDDR3
    Storage 8GB eMMC
    interface SODIMM-DDR3,204 PIN , all S700 GPIO support
    size 67.5 x 30 mm

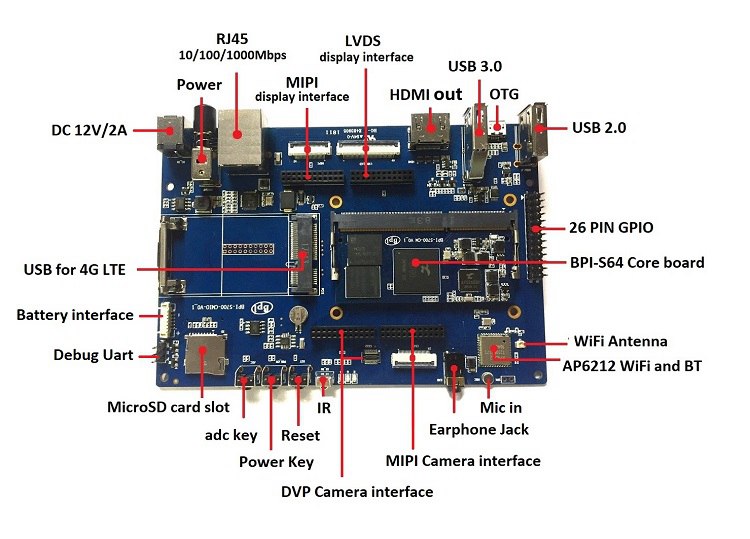

    BPI-S64 核心板开发套件硬件接口:

    HardWare Specification of Banana pi BPI-S64 core kit
    CPU Actions SOC S700,ARM Cortex-A53 Quad-Core CPU,Mali450 MP4 GPU
    GPU Mali450 MP4 GPU ,OpenGL ES2.0/1.1 OpenVG 1.1 EGL 1.5
    Memory 2GB LPDDR3
    Storage 8GB eMMC
    Power 5V @ 2A via DC power
    Low-level peripherals 26 Pins Header, 28×GPIO, some of which can be used for specific functions including UART, I2C, SPI, PWM, I2S.
    Onboard Network 1 x 10/100/1000Mbps Ethernet
    Wifi/Bluetooth AP6212 WiFi and BT 4.0
    On board Storage MicroSD (TF) card; 8G eMMC;SIM card slot
    Display HDMI (Type A) output with HDCP 1.4, resolutions up 1920x1200; MIPI DP ;LVDS
    Video decoder/encode support Real-time vide decode of most popular vide formats ,such as MPEG-4,H.264,H.265. support video encoder for baseline H.264
    Audio support two audio device HDMI and headphone, also support Audio In/Out with PIN define. support 1 MIC in
    HDMI Out/In 1* HDMI 1.4
    Audio outputs/Inputs HDMI, I2S audio,Audio micro out
    4G USB standard 4G LTE interface
    USB 3.0 1x USB 3.0 host
    USB 2.0 1x USB 2.0 OTG, 1 x USB port
    Display 1* Mini DP ,1* LVDS lcd,
    Camera 1 x DVP camera interface ,1 x MIPI interface
    RTC battery RTC battery power interface
    battery 3.7V battery interface.
    Buttons Reset button, Power button, ADC button
    Leds Red, Green, Blue
    Other IR reciever
    Sizes
    Power DC 5V/2A
    Weight 150g
    在线wiki文档:https://wiki.banana-pi.org/Banana_Pi_BPI-S64_Core
