开源单板计算机

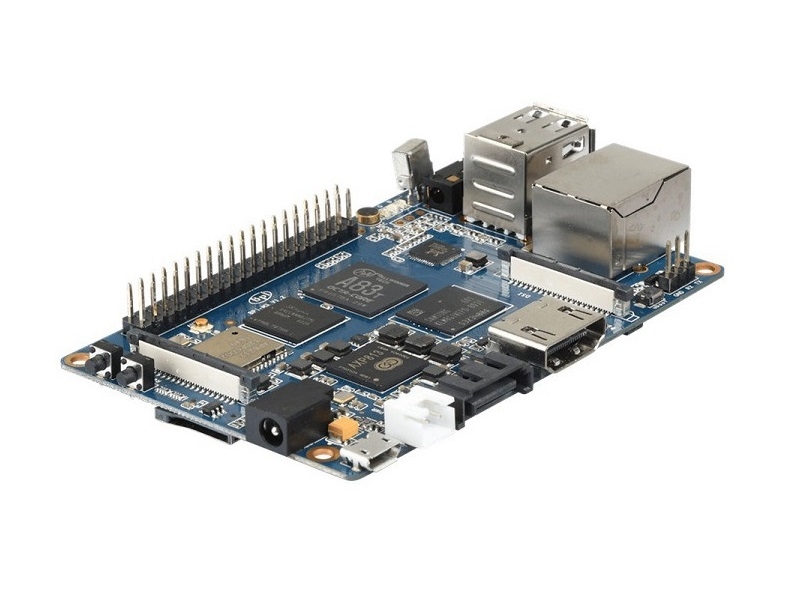

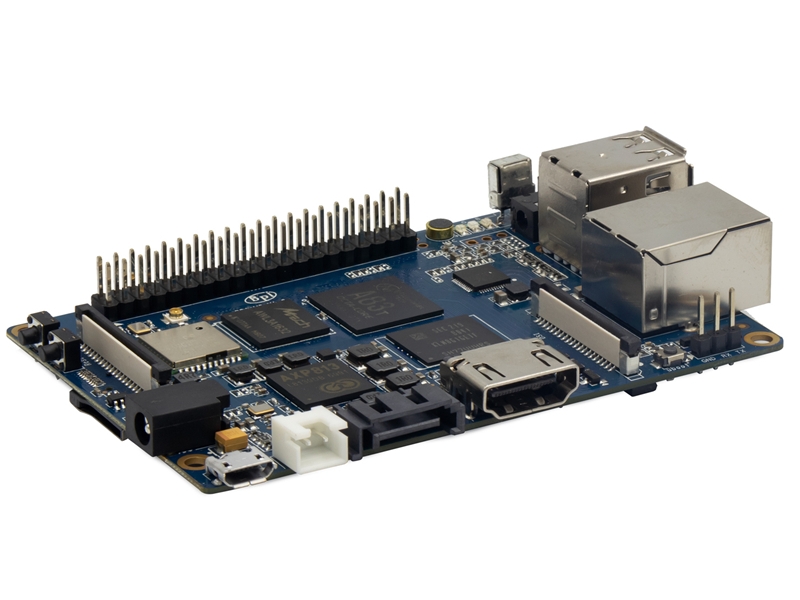

香蕉派BPI-M3 单板计算机采用全志A83T 8核芯片方案设计,板载2G RAM和8G eMMC

  • 全志A83T Octa-core 1.8GHz Powerful CPU
  • 2 GB LPDDR3 内存
  • 8 GB eMMC 存储
  • SATA 硬盘接口
  • HDMI 高清视频输出
  • IR 红外遥控
  • 板载WiFi & BT蓝牙
  • MIPI DSI 显示屏接口
  • CSI camera 摄像头接口

    Banana PI BPI-M3 是一款8核高性能单板计算机,Banana PI BPI-M3是一款比树莓派更强悍的8核Android 5.1产品。Banana PI BPI-M3 兼容性强大,可以跑android系统,Debian linux,Ubuntu linux, Raspberry Pi系统 和 cubieboard 系统.

    Banana PI BPI-M3硬件:1Ghz ARM7 8核处理器,2GB LPDDR3内存,千兆以太网口,2 USB 接口 流畅运行Android5.1。Banana PI BPI-M3体积如信用卡大小,与BPI-M1+尺寸一样,但接口有不同,轻松运行《雷神之锤三:竞技场》这样的游戏,支持2K高清视频输出,GPIO兼容Raspberry PiB+并能运行其ROM Image。

    BPI-M3在八核处理器上,采用了全志科技的A83T处理器。全志A83T采用台积电最新的28nm HPC工艺,基于8个ARMCortex-A7 CPU内核,最高频率可达2.0GHz,8核心可同时全速运行;在图像处理方面,A83T沿用A31/A31s的PowerVR SGX544 GPU,运行频率最高可达700MHz左右,图像处理性能十分强劲,确保了极致的游戏体验及UI流畅度。内存方面,DDR工作频率可达800MHz左右,能够流畅完美带动1920×1200高清分辨率屏幕。

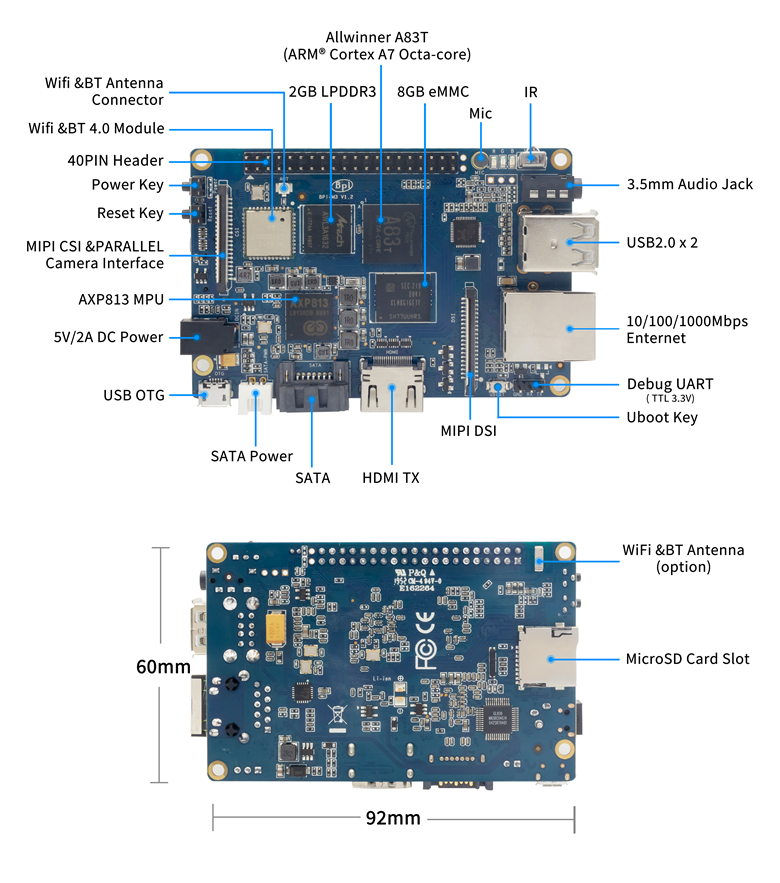

    硬件接口示意图:


    硬件规格:

    Banana Pi BPI-M3 硬件规格
    CPU Allwinner A83T ARM Cortex-A7 Octa-Core 1.8 GHz, 512KB L1 cache and 1MB L2 cache
    GPU PowerVR SGX544MP1 Comply with OpenGL ES 2.0 OpenCL 1x, DX9_3
    Memory 2 GB LPDDR3 (shared with GPU)
    Storage On Board 8GB eMMC Flash, Micro SD-Card slot, SATA 2.0 Port (USB-to-SATA bridge)
    Network 10/100/1000 Mbit/s Ethernet (Realtek RTL8211E/D) + Wi-Fi 802.11 b/g/n (AP6212) +  BT4.0
    Video Input(s) A CSI input connector allows for the connection of a designed camera module
    Video Output(s) HDMI 1.4 (Type A Full), MIPI Display Serial Interface (DSI) for raw LCD Panel
    Audio Input(s) On board microphone
    Audio Output(s) 3.5mm jack and HDMI
    USB ports USB 2.0 PORT (x2), USB OTG (x1)
    Remote IR Receiver (x1)
    GPIO 40 Pin Header : GPIO (x28) and Power (+5V, +3.3V and GND). Some of I/O Pin can be used for specific functions as UART, I2C, SPI or PWM
    Switches Reset, Power and U-boot
    LED Power Status and 8P8C
    Power Source 5 volt @2A via DC Power and/or Micro USB (OTG)
    Size & Weight 92x60mm, 48g
    OS Android and Linux



    Online development documents: https://wiki.banana-pi.org/Banana_Pi_BPI-M3
